Product Features
- VMF / ASTM for testing to ASTM D3175-11
- VMF / ASTM complete with crucible, lid and holder
- VMF 10/6 for testing to ISO 562:2010
- VMF 10/6 soft-closing, vertical lift door
- VMF 10/6 calibration ports to enable an unsheathed thermocouple to be positioned below each crucible
- Range of accessory crucibles and lids available
Delivery options
At Cadmus Products, we prioritise efficient order delivery and offer competitive shipping rates worldwide. Our streamlined process ensures clarity and reliability for all your shipping requirements.
- We handle consignments of various sizes across the UK and globally, primarily using DHL, but may select other couriers for specific needs.
- For online laboratory product purchases, shipping costs are displayed at checkout. For quoted items, shipping prices will be included in your email quote.
- Please visit our shipping and delivery page for more information here.

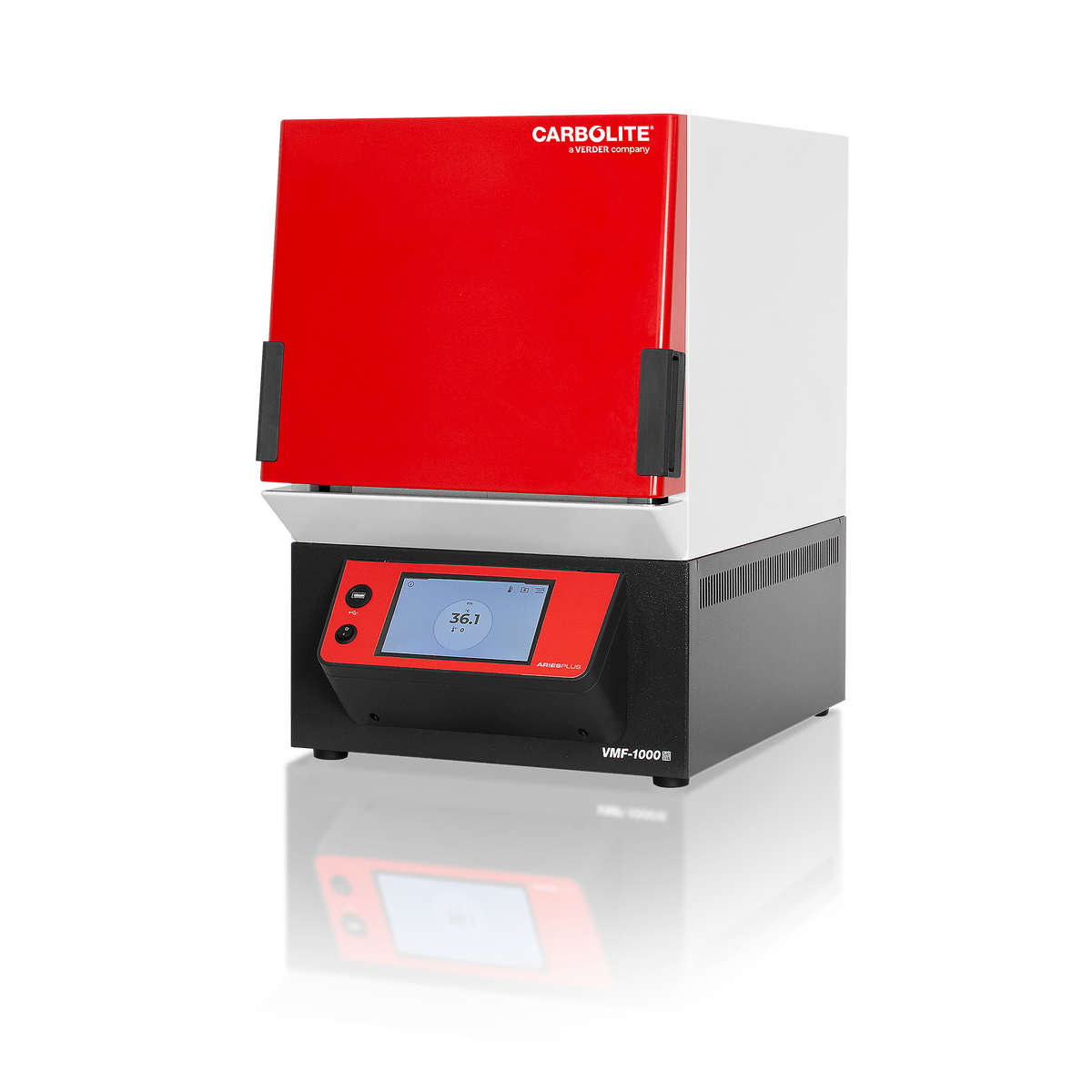

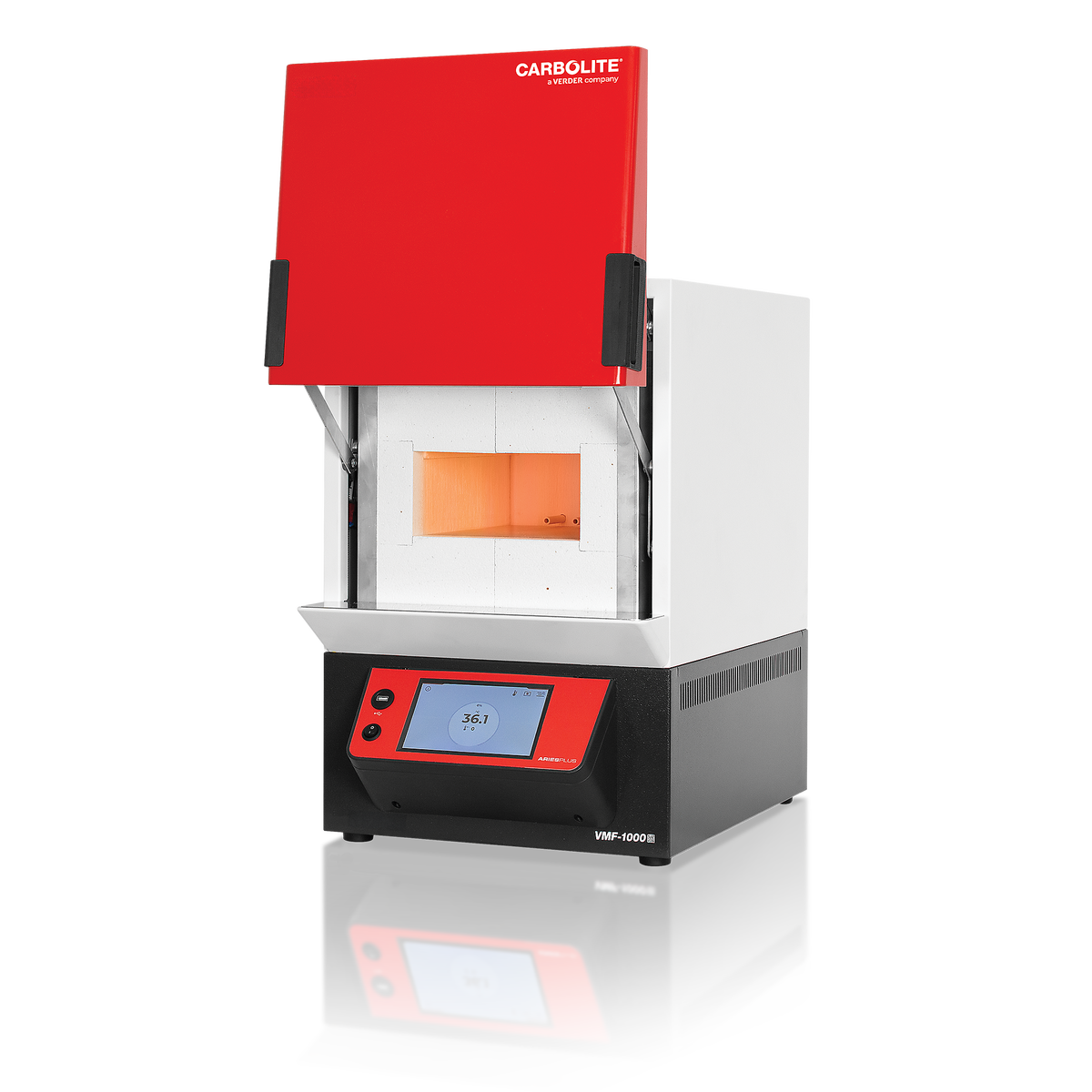

Carbolite VMF Volatile Matter Furnace

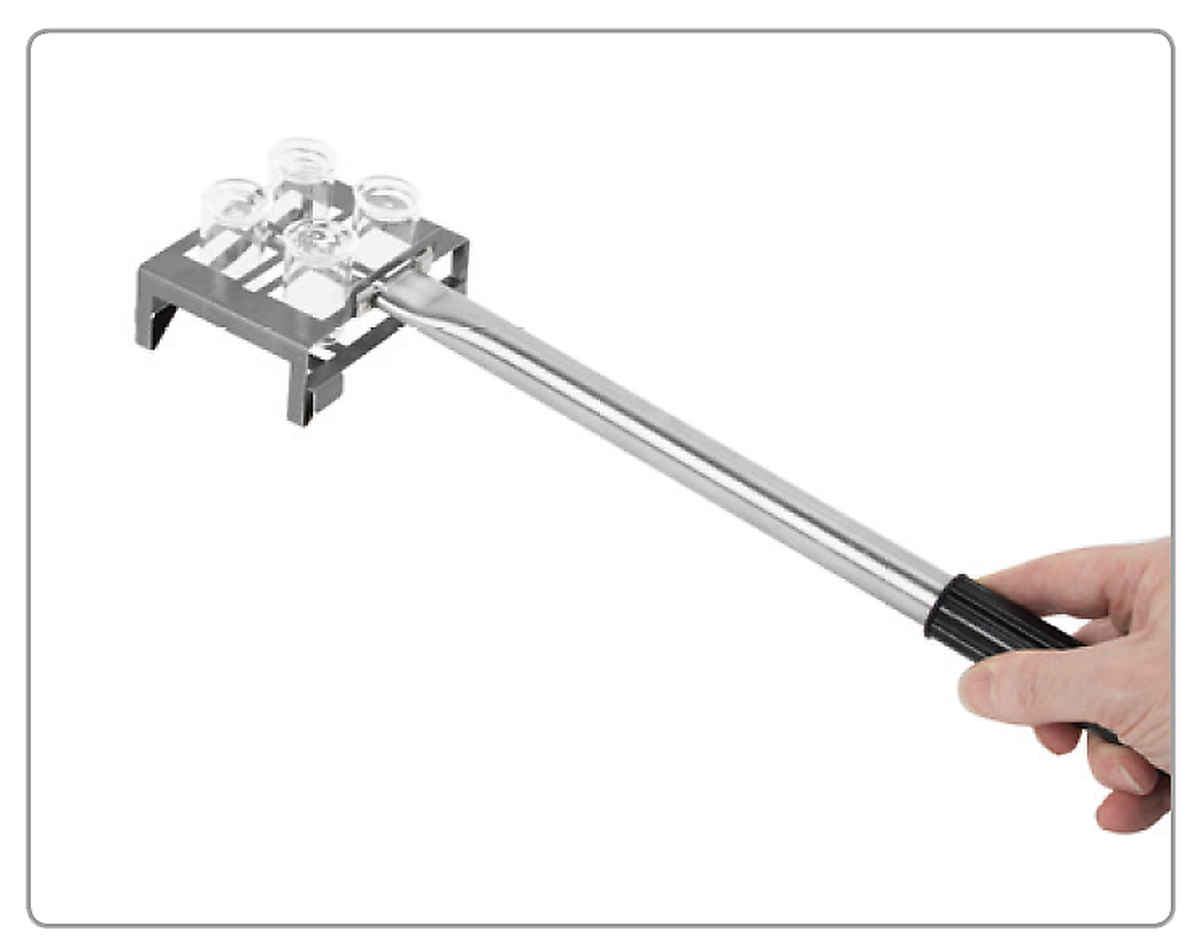

- • Optional 4 crucible stand + 4 crucibles with lids (VMF 10/6)

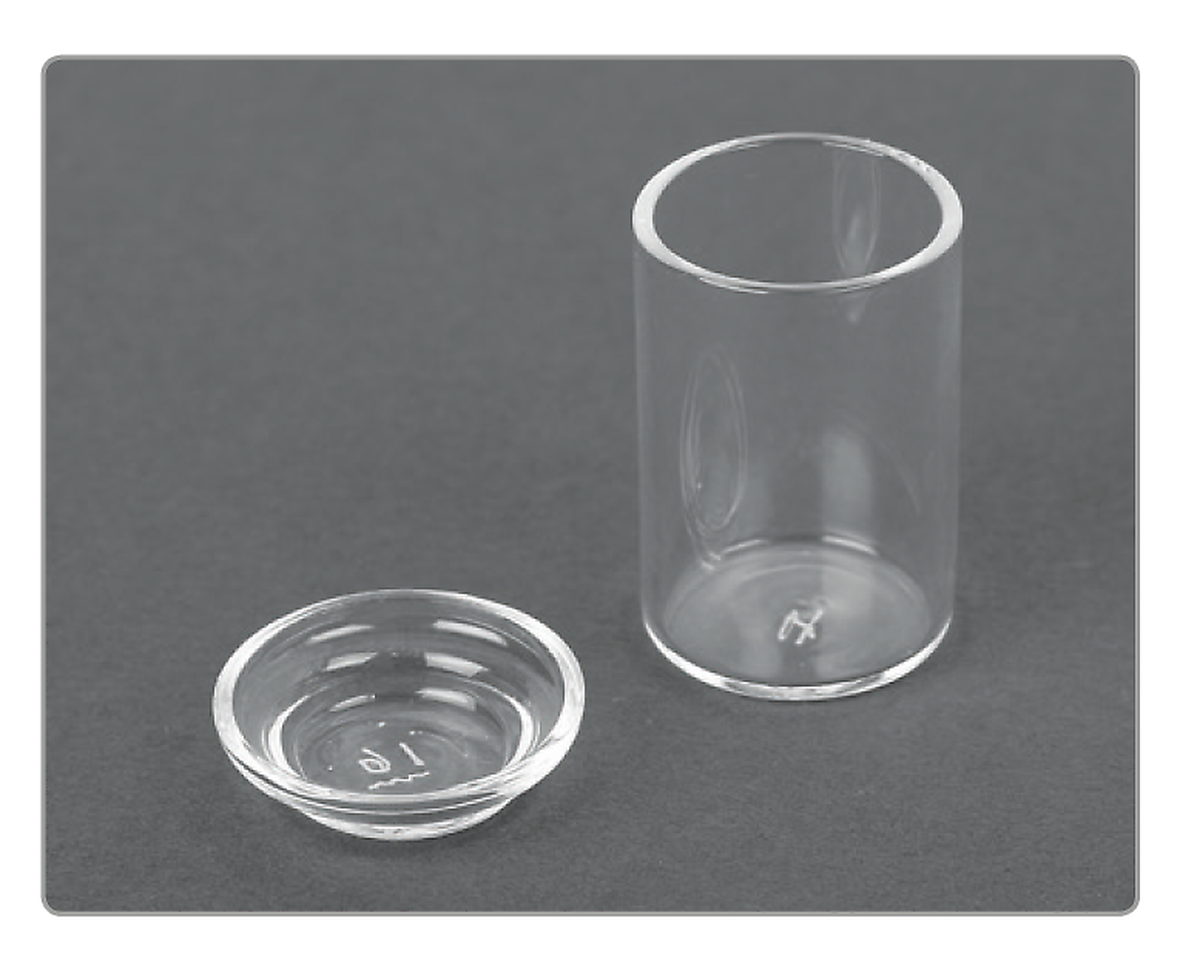

- • Optional crucible with lid (VMF 10/6)

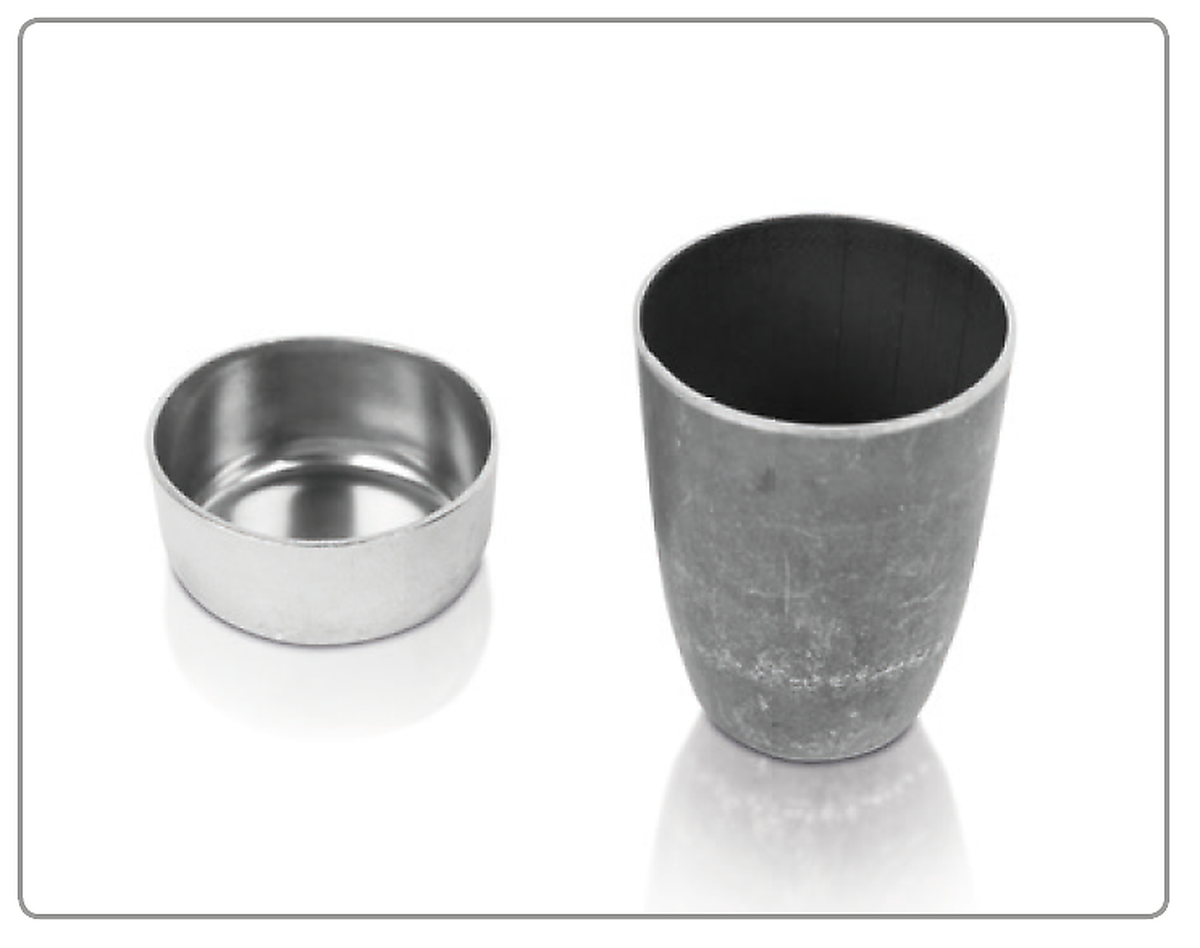

- • Corrosion- and oxidation-resistant Inconel crucible & lid (VMF/ASTM) - supplied with the furnace

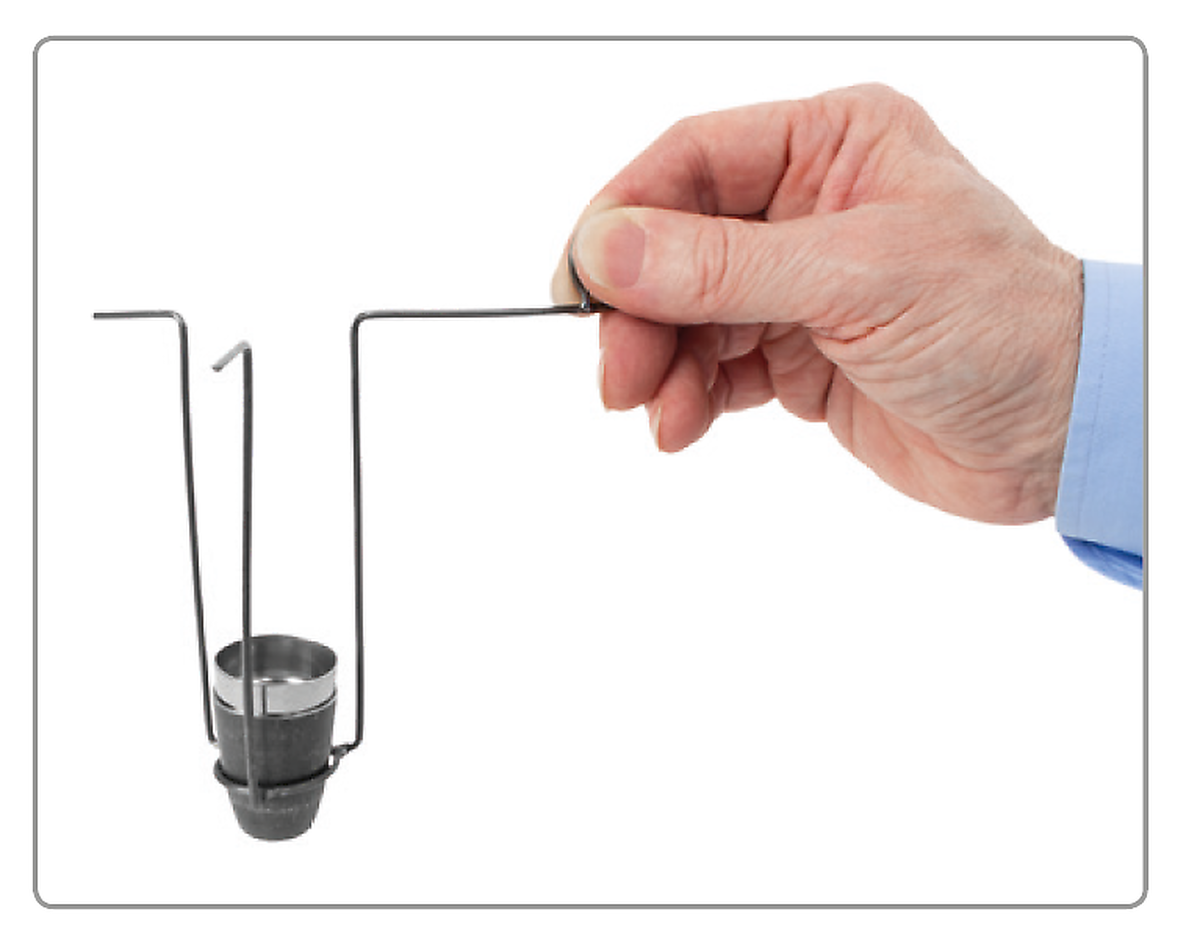

- • Standard wire crucible holder shown with crucible & lid (VFM/ASTM) - supplied with the furnace
- • VMF / ASTM for testing to ASTM D3175-11
- • VMF / ASTM complete with crucible, lid and holder
- • VMF 10/6 for testing to ISO 562:2010
- • VMF 10/6 soft closing, vertical lift door
- • VMF 10/6 calibration ports to enable an unsheathed thermocouple to be positioned below each crucible
- • Accessory crucibles and lids available
- • 4 crucible rack with loading handle (for VMF 10/6)
- • 9 crucible rack with loading hangle (for VMF 10/6)
- • Over temperature protection
- • Digital communications or nanodac paperless chart recorder to provide documentary evidence of the test procedure (for VMF 10/6)
- • Optional calibrated thermocouple probe with digital indicator (for VMF 10/6)
The VMF is specifically designed for testing the volatile matter of coal.
Carbolite is a leading manufacturer of high-temperature furnaces and ovens from 30°C to 3000°C. We are the technology leader in tube furnaces as well as vacuum and special atmosphere technology. With more than 80 years of experience in thermal engineering, Carbolite develops innovative solutions trusted by research laboratories, pilot plants and manufacturing sites around the world. Carbolite products are defined by superior energy efficiency, excellent reliability, and the use of high-quality components.
Features
Standard features
Options (specified at time of order)
We're happy to help! Please submit via the 'send enquiry' button at the top of the page to place an order, or email [email protected] or call +44 330 088 0595, and a member of the team will get back to you.
Technical Product Specifications
| Model | Max. temp. [°C] |
Heat-up time [mins] |
Max. continuous operating temp. [°C] |
Type | Dimensions: Internal Diameter x D (mm) |
Dimensions: External H x W x D [mm] |
Dimensions: Internal H x W x D [mm] |
Power supply | Max. power [W] |
Holding power [W] |
Thermo couple type |
Weight [kg] |
| VMF/ASTM | 1000 | - | 1000 | Top loading | 50 x 100 | 330 x 410 x 300 | - |
220 - 240V, 50 - 60Hz,single phase |
950 | 1270 | N | 9 |
| VMF 10/6 | 1000 | 20 to 900°C | 950 | Front loading | - | 670 x 435 x 608 | 100 x 210 x 260 | 220 - 240V, 50-60Hz, single phase, 13A |
3000 | 2624 | K | 47 |
| VMF Range - Coal and Coke Testing Furnaces |
Standard Voltages | ||||||
| -120SN | -208SN | -208TX | -230SN | -230TX | -400TN | ||
| 110 - 120 V single phase |
200 - 210 V single phase |
200 - 210 V three phase no N |
220 - 240 V single phase |
220 - 240 V three phase no N |
380 - 415 V three phase + N |
||
| VMFASTM-volts | VMF/ASTM D3175, 1000°C, ASTM D3175 | o | - | - | o | - | - |
| VMF1006C-volts | VMF 10/6 /ISO562, 1000°C, ISO562 | - | o | - | o | - | - |
| More options are available than are listed on this product. For probe thermocouples, gas safety system, temperature indicators and iTools software. |
Key • = Default o = Option available - = Not available |
||||||
| Temperature controller options - for VMF/ASTM | Models | ||
| VMF/ASTM | VMF 10/6 | ||
| &02-132 | 132 Base Controller | • | - |
| &02-132-3016 | Upgrade from 132 to EPC3016P1 1x 24 segment programmer | o | - |
|
Temperature controller options - for VMF 10/6 |
|||
| &02-3016 | EPC3016P1 1x 24-segment programmer | - | • |
| &02-3016-AP | Upgrade from EPC3016P1 to AriesPlus touchscreen temperature programmer | - | o |
| &02-3016-NanoPR | Upgrade from EPC3016P1 to Nanodac PR programmer/recorder | - | o |
|
Built-in features and options - control options |
|||
| TMP-DIGOT-F | Digital over-temperature protection | o | o |
| TMP-CALIB-CF11 | Single temperature, single position factory calibration of workspace for chamber furnaces, using equipment traceable to national standards. Please specify temperature (up to 1100°C maximum) and position when ordering. |
o | o |
| Built-in features and options - build options | |||
| &11-18-02 | Glazed viewport | - | o |
|
Optional Accessories |
|||
| 40-209-010-0020 | Inconel crucible for VMF/ASTM | o | - |
| 00329-3-2001 | Crucible holder for VMF/ASTM | o | - |
| 40-209-460-0025 | Crucible + lid for VMF 10/6 | - | o |
| 00037-3-2003 | 4 Crucible stand for VMF 10/6 | - | o |
| 00037-3-2004 | 9 Crucible stand for VMF 10/6 | - | o |
| 00125-3-1007 | Tray handle for AAF trays or VMF 10/6 crucible stand | - | o |
