Product Features
- Flexible transmitter monitors up to three sensors
- Touch key user interface simplifies the operation, configuration, and maintenance.
- Full color LED display and different light rings provide a clear indication status.
- Intelligent sensor module design reduces cost by replacing only the plastic sensor cartridge
- Optional Bluetooth® App enables easy configuration and maintenance work
Delivery options
At Cadmus Products, we prioritise efficient order delivery and offer competitive shipping rates worldwide. Our streamlined process ensures clarity and reliability for all your shipping requirements.
- We handle consignments of various sizes across the UK and globally, primarily using DHL, but may select other couriers for specific needs.
- For online laboratory product purchases, shipping costs are displayed at checkout. For quoted items, shipping prices will be included in your email quote.
- Please visit our shipping and delivery page for more information here.

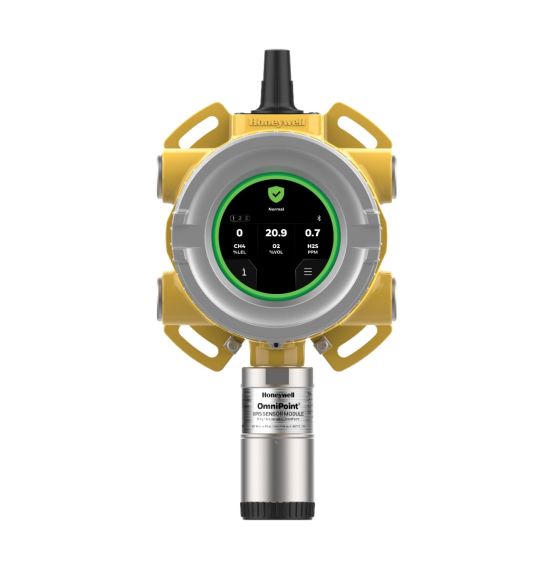

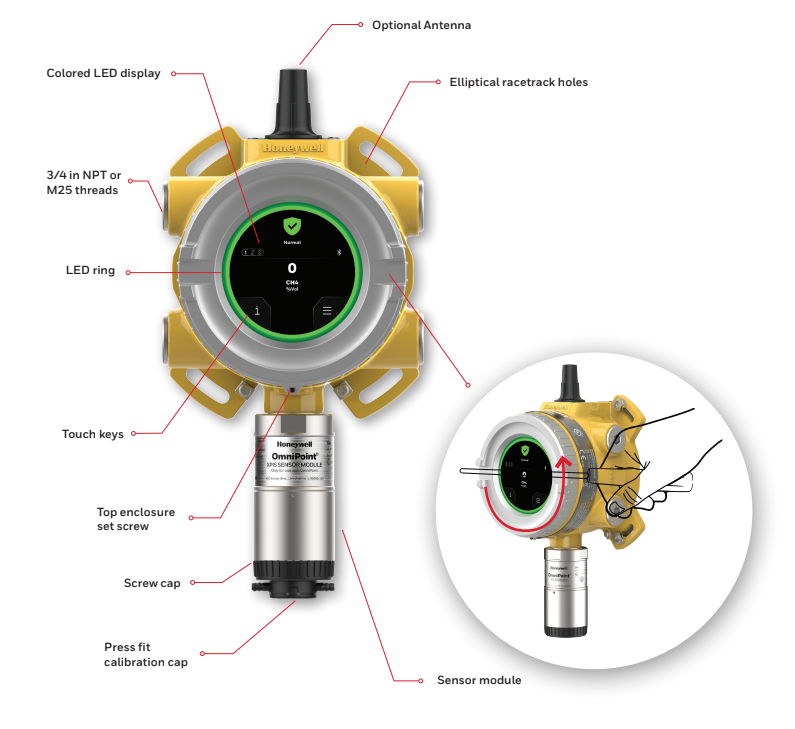

Honeywell OmniPoint Fixed Gas Detector
The OmniPoint™ transmitter is a comprehensive gas detection solution designed to operate in hazardous locations and support multiple sensors in the detection of toxic, oxygen, and flammable gas hazards.
OmniPoint™ utilizes multiple sensor technologies to meet diverse gas detection challenges in a variety of global industries. Full color, touch key interface and Bluetooth® enabled operation make setup and maintenance intuitive.
Support for up to three sensors makes OmniPoint™ both flexible and scalable to meet your safety requirements.
Features & Benefits:
- Flexible transmitter monitors up to three sensors
- Touch key user interface simplifies the operation, configuration, and maintenance.
- Full color LED display and different light rings provide a clear indication status.
- Intelligent sensor module design reduces cost by replacing only the plastic sensor cartridge
- Optional Bluetooth® App enables easy configuration and maintenance work

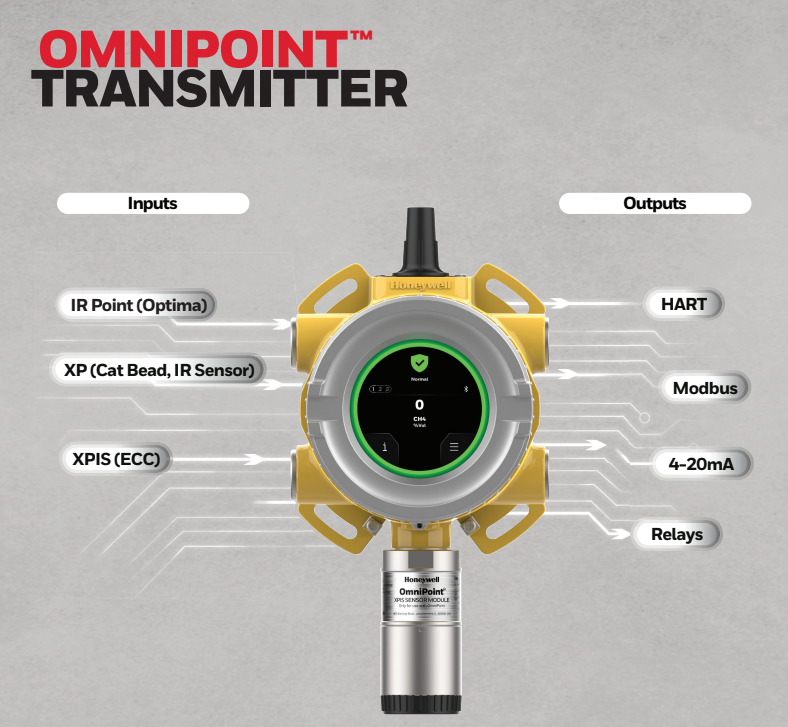

Quick Specs:
- Wide temperature range from -55°C to 75ºC (-67°F to 167°F) for use in tough environments.
- Integral 4-point mounting allows more flexible installation options
- Multiple outputs including 4-20mA, Relays, HART®, and Modbus communication all standard
AVAILABLE GASES AND SELECTABLE SENSOR MEASURING RANGES
| GASES | FORMULA |
SELECTABLE SENSOR MEASURING RANGES |
SENSOR TYPE |
| Flammable | Various |
0-100 % LEL (100 % LEL default) |
Catalytic Bead |
| Methane | CH4 | 0-100 % LEL (100 % LEL default) | IR Sensor |
| Propane | C3H8 |
0-100 % LEL (100 % LEL default) |
IR Sensor |
| Hydrogen Sulphide L | H2S |
0-50 ppm (15 ppm default) |
Electrochemical |
| Hydrogen Sulphide H | H2S |
0-500 ppm (100 ppm default) |
Electrochemical |
| Oxygen | 02 | 0-25 % V/V (fixed) | Electrochemical |
| Ammonia L | NH3 | 0-200 ppm (200 ppm default) | Electrochemical |
| Ammonia H | NH3 | 0-1000 ppm (1000 ppm default) | Electrochemical |
| Sulphur Dioxide | SO2 | 0-20 ppm (15 ppm default) | Electrochemical |
| Carbon Monoxide | CO |
0-500 ppm (300 ppm default) |
Electrochemical |
| Chlorine | CL2 | 0-5 ppm (fixed) | Electrochemical |
SENSOR MODULE
The OmniPointTM Sensor Module can be installed with the transmitter or fitted to a junction box and mounted remotely up to 300 m away. Choose a sensor specifically calibrated to detect a variety of toxic and flammable gases. Each sensor is pre-calibrated and simply plugs into the sensor module.
The intrinsically safe design of the XPIS sensor allows electrochemical sensors to be changed in both safe and hazardous areas without cycling power. The sensor is easily replaced without the need to replace the entire.Sensor Module which is an advantage in total cost of ownership through the service life of transmitter.
PROTECTING YOUR WORKERS AND YOUR ENTERPRISE
Honeywell offers multiple detection methods for a layered safety approach to meet the requirements of difficult applications and hazardous environments. Contact us today to learn more.
| GENERAL SPECIFICATIONS | |
| Description |
The OmniPointTM transmitter is a comprehensive gas detection solution designed to operate in hazardous locations and support multiple sensors in the detection of toxic, oxygen, and flammable gas hazards. |
| Material | Enclosure: Five-coat marine finish painted aluminum alloy or 316 stainless steel |
| Weight | Transmitter (enclosure only): Aluminum alloy: 2.45 kg (5.40 lb). 316 stainless steel: 5.37 kg (11.84 lb) Transmitter with display module: Aluminum alloy: 2.92 kg (6.44 lb). 316 stainless steel: 5.84 kg (12.88 lb) XPIS sensor module with cartridge: 0.80 kg (1.76 lb) XP sensor module with cartridge: 0.69 kg (1.52 lb) |

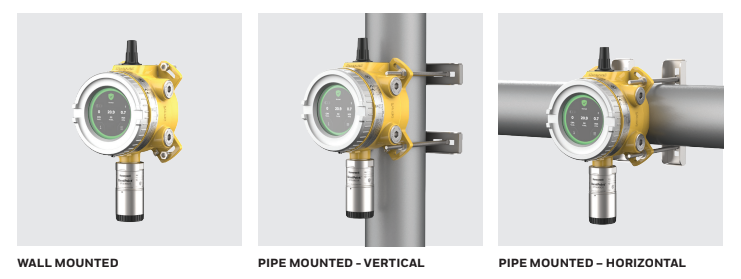

| Mounting | Can be mounted to flat wall surfaces of various types or to pipes using the optional pipe mount kit. The pipe mount kit allows the transmitter to be mounted to pipes from 2 inches to 6 inches (50 mm to 140 mm) in diameter and includes the pipe mount bracket, carriage bolts, nuts, and lock washers. The transmitter is configured with four cable/conduit ports built into the housing for wiring and mounting sensors. |
| Cable Entries |
Four conduit/cable entries (two right, two left, one bottom). Entry size M25 or 3/4 inch NPT. One top entry (M22) for optional Bluetooth antenna |
| ENVIRONMENTAL | |
| IP Rating | IP66/IP67 in accordance with IEC/EN 60529. NEMA 4X |
| Operating Temperature | -55°C to 75oC (-67°F to 167°F) |
| Operating Humidity | 0 % to 99 %RH (non condensing) |
| Operating Pressure | 90 kPA to 110 kPa |
| Storage Conditions | -55°C to 75°C (-67°F to 167°F), 0 % to 99 %RH (non-condensing) |
| ELECTRICAL | |
| Input Voltage Range |
12 Vdc to 32 Vdc (24 Vdc Nominal) (Catalytic or IR) and XPIS (EC CEll) sensors and 18 Vdc to 32 Vdc (24 Vdc Nominal) Optima |
| Power Consumption | Transmitter : Normal 4.5 watts, Max 8.5 watts XPIS sensor (EC cell) : Max 0.3 watts XP sensor (Catalytic or IR cell) : Max 1.7 watts Max consumption is 17W for Optima + 2 XP (CB) sensors |
| Visual | 3 inch (76 mm) circular high resolution, full color, TFT display Four capacitive touch keys that provide navigation and other functions. LED ring indicator surrounding the 3 in (76 mm) circular display indicates the device status. (Normal operation: Green, Alarm: Red, Fault/Warning: Yellow, Wireless communication: Blue) |
| Current Output |
3 channels of fully configurable 4 mA to 20 mA providing current sink, current source and isolated modes of operation to support up to 3 sensors simultaneously. Note : OmniPoint will automatically detect whether it should operate in current sink or current source mode |
| HART® Communication |
Provides HART® communication over 1st channel of 4 mA to 20 mA output compliant with HART® 7 Functions Supported by HART® |
| Relays |
Provides three fully user configurable relay outputs that are activated based on current alarm state and one fault relay that is normally energized. Provides 3 x SPDT alarm and 1 x SPDT fault relay |
|
CERTIFICATION |
|
| Hazardous Area Approvals |
UL cUL classified: UL 1203, UL 913, UL 61010-1, CSA C22.2 No. 25, CSA 22.2 No. 30, |
| Performance Approvals Flammable Gas |
(Pending) |
|
WIRELESS COMMUNICATION - BLE MODULE (OPTIONAL) |
|
| Description |
The BLE connection enables wireless communication of the OmniPoint transmitter to a smartphone or tablet. |
| Installation |
Optional BLE module is independent of the main (display) module. The external antenna must be installed with the BLE module. |
| Mode and Version |
Bluetooth point to point mode BLE 5.0 |
| Distance |
Up to 66 ft (20 m) (mobile device dependant) |
| Approval |
Certified and registered Bluetooth SIG. FCC, RED, IC |
| Function Supported |
Gas reading with gas name and units of measurement General/device information |
|
MODBUS RTU MODULE (OPTIONAL) |
|
| Description |
The Modbus output module provides an isolated RS485 output to enable the connection of the OmniPoint transmitter to a multi-drop Modbus network. |
| Installation |
As an optional module independent of the main (display) module, it can be installed in the factory or in the field. |
| Connections |
RS485+, RS485-, Drain |
| Physical Layer |
Isolated RS485, 2400 to 57,6000 baud; 9,600 default |
| Address |
Address range is 1 to 247 |
| Maximum # of Nodes |
247; up to 32 RTUs per loop |
| Protocol |
Modbus RTU |
| Function Supported |
Gas reading with gas name and units of measurement General/device information |
|
WIRING REQUIREMENTS |
|
| Sensor |
Two-wire, for XPIS Sensor module up to (984 ft) 300 m |
|
GAS CONCENTRATION DISPLAY & INTERFACE |
|
| Instrument |
3 inch TFT display with ring indicator, five-digit alphanumeric characters with separate units, touch key interface, alarm snapshot with gas trend |
| Remote |
Local UI or BLE 5.0 enabled device via OmniPoint app |
|
WARRANTY |
|
| Transmitter Unit |
5 years |
| PART NUMBER | DESCRIPTION | WARRANTY PERIOD |
| OPT-R1X-FL1 | Sensor Cart, Cat CH4 0-100%LEL, 5% | 3 years |
| OPT-R1X-FL2 | Sensor Cart, Cat CH4 0-100%LEL, 4.4% | 3 years |
| OPT-R1S-HS1 | Sensor Cart, H2S 0-15.0ppm, 5ppm | 3 years |
| OPT-R1S-HS2 | Sensor Cart, H2S 0-100ppm, 20ppm | 3 years |
| OPT-R1S-OX1 | Sensor Cart, O2 0-25% v/v, 23.5% | 3 years |
| OPT-R1S-CO1 | Sensor Cart, CO 0-300ppm, 100ppm | 3 years |
| OPT-R1X-ME1 | Sensor Cart, IR CH4 0-100%LEL, 5% | 3 years |
| OPT-R1X-ME2 | Sensor Cart, IR CH4 0-100%LEL, 4.4% | 3 years |
| OPT-R1X-PR1 | Sensor Cart, IR C3H8 0-100%LEL, 2.1% | 3 years |
| OPT-R1X-PR2 | Sensor Cart, IR C3H8 0-100%LEL, 1.7% | 3 years |
| OPT-R1S-AM1 | Sensor Cart, NH3 0-200ppm, 50ppm | 1 year |
| OPT-R1S-AM2 | Sensor Cart, NH3 0-1000ppm, 200ppm | 1 year |
| OPT-R1S-CL1 | Sensor Cart, CL2 0-5.0ppm, 1ppm | 1 year |
| TABLE 1. OMNIPOINT SENSOR SPECS | |||||||||||||
| Sensor Type |
Gas | Cartridge P/N | Selectable Full Scale Range |
Default Range |
Steps | Resolution | Lower Detectable Limit (LDL) |
Lowest Alarm Level (LAL) |
Default Alarm 1 Level |
Alarm 1 Type |
Default Alarm 2 Level |
Alarm 2 Type |
Operating Temperature |
| XPIS SENSOR | |||||||||||||
| NH3 | Ammonia | OPT-R1S-AM1 | 50 ppm to 200 ppm |
200 ppm | 50 ppm | 1 ppm | 6 ppm | 20 ppm | 50 ppm | Rising | 100 ppm | Rising | -20°C to 40°C -4°F to 104°F |
| NH3 (High) |
Ammonia | OPT-R1S-AM2 | 200 ppm to 1000 ppm |
1000 ppm | 50 ppm | 1 ppm | 30 ppm | 100 ppm | 200 ppm | Rising | 500 ppm | Rising | -20°C to 40°C -4°F to 104°F |
| CO | Carbon Monoxide |
OPT-R1S-CO1 | 100 ppm to 500 ppm |
300 ppm | 100 ppm | 1 ppm | 5 ppm | 15 ppm | 100 ppm | Rising | 200 ppm | Rising | -40°C to 55°C -40°F to 131°F |
| Cl2 | Chlorine | OPT-R1S-CL1 | 5.00 ppm (Fixed) |
5.00 ppm | N / A | 0.01 ppm | 0.15 ppm | 0.50 ppm | 1.00 ppm | Rising | 2.00 ppm | Rising | -20°C to 55°C -4°F to 131°F |
| H2S | Hydrogen Sulphide |
OPT-R1S-HS1 | 10 ppm to 50 ppm |
15.0 ppm | 0.1 ppm | 0.1 ppm | 1.0 ppm | 3.0 ppm | 5.0 ppm | Rising | 10.0 ppm | Rising | -40°C to 65°C -40°F to 149°F |
| H2S (High) |
Hydrogen Sulphide |
OPT-R1S-HS2 | 50 ppm to 500 ppm |
100 ppm | 10 ppm | 1 ppm | 1 ppm | 5 ppm | 20 ppm | Rising | 50 ppm | Rising | -40°C to 65°C -40°F to 149°F |
| O2 | Oxygen | OPT-R1S-OX1 | 25 %vol (Fixed) |
25.0 %vol | N / A | 0.1 %vol | 0.2 %vol | 5.0 %vol | 23.5 %vol | Rising | Rising | -40°C to 60°C -40°F to 140°F |
|
| SO2 | Sulphur Dioxide |
OPT-R1S-SO1 | 5 ppm to 20 ppm |
15.0 ppm | 5.0 ppm | 0.1 ppm | 0.6 ppm | 2.0 ppm | 5.0 ppm | Rising | Rising | -40°C to 65°C -40°F to 149°F |
|
| XP SENSOR | |||||||||||||
| FL CAT | Flammables | OPT-R1X-FL1 (UL) OPT-R1X-FL2 (ATEX) |
20 %LEL to 100 %LEL |
100 %LEL | 10 %LEL | 1 %LEL | 3 %LEL | 5 %LEL | 20 %LEL | Rising | 50 %LEL | Rising | -40°C to 75°C -40°F to 167°F |
| CH4 IR - LEL |
Methane | OPT-R1X-ME1 (UL) OPT-R1X-ME2 (ATEX) |
20 %LEL to 100 %LEL |
100 %LEL | 10 %LEL | 1 %LEL | 3 %LEL | 5 %LEL | 20 %LEL | Rising | 50 %LEL | Rising | -40°C to 75°C -40°F to 167°F |
| C3H8 IR - LEL |
Propane | OPT-R1X-PR1 (UL) OPT-R1X-PR2 (ATEX) |
20 %LEL to 100 %LEL |
100 %LEL | 10 %LEL | 1 %LEL | 3 %LEL | 5 %LEL | 20 %LEL | Rising | 50 %LEL | Rising | -40°C to 75°C -40°F to 167°F |
