Product Features
  • Dual-Channel Measurement: Measure two parameters simultaneously (e.g., pH + conductivity or DO + ion).

  • Intelligent Sensor Management (ISM): Auto sensor recognition with calibration and sensor status tracking.

  • Rugged & Portable: IP67-rated waterproof housing; ideal for field or lab use.

  • High Accuracy: Precise readings for pH, conductivity, ion, DO, and more.

  • User-Friendly Interface: Clear display, one-handed operation, and intuitive navigation.

  • GLP-Compliant Data Logging: Stores up to 500 records (Pro model) with time, date, and user/sample ID.

  • Flexible Calibration: Supports multi-point calibration and automatic buffer recognition.

  • Easy Data Export: USB or RS-232 connectivity (Pro model) with PC software support.

Delivery options

At Cadmus Products, we prioritise efficient order delivery and offer competitive shipping rates worldwide. Our streamlined process ensures clarity and reliability for all your shipping requirements.

  • We handle consignments of various sizes across the UK and globally, primarily using DHL, but may select other couriers for specific needs.

  • For online laboratory product purchases, shipping costs are displayed at checkout. For quoted items, shipping prices will be included in your email quote.

  • Please visit our shipping and delivery page for more information here.

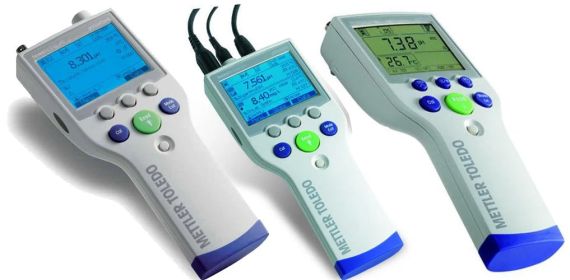

Mettler Toledo SevenGo Duo™ Portables pH Meters

SKU
SevenGoDuo

Mettler Toledo SevenGo Duo™ Portables pH Meters

Composed of High-Calibre Individuals

     All of the products in the SevenGo™ family from METTLER TOLEDO are characterized by user-friendliness and excellent ergonomics. The instruments are suited for mobile measurements both in the field and in the production environment.

Routine tasks for SevenGo Duo™
The SG23 SevenGo Duo™ pH/mV/conductivity meter is best suited for routine measurements of pH or conductivity while allowing for parallel measurements in dual-channel mode. In addition, it also offers Intelligent Sensor Management (ISM®).

Special applications for SevenGo Duo pro™
The SevenGo Duo pro™ instruments allow simultaneous determination and display of two electrochemical parameters with highest possible accuracy. They are operated using soft keys with interactive function fields on the display, thus enabling flexible and convenient menu navigation. These instruments offer extensive security functions, such as Intelligent Sensor Management (ISM®), PIN-protection, date/time and sensor/sample ID.

  Overview of functions and equipment SevenGo Duo™ model SG23 SG68 SevenGo Duo pro™ models SG78 SG98
pH/Ion Calibration points 3 5 5 5
Predefined pH buffer groups 4 7 7 7
User-defined pH buffer group
Automatic pH buffer recognition
Linear calibration mode
Segmented calibration mode
Choice of number of digits
Choice of ion unit (mg/L, mmol/L, mol/L, %, ppm)
Choice of stability criteria (strict, normal, fast)
Conductivity Calibration points 1   1
Predefined conductivity standard 3   5
User-defined conductivity standard
Manual cell constant entry
Linear temperature compensation
Non-linear temperature compensation
Choice of reference temperature (20 °C, 25 °C)
Oxygen Calibration points   2   2
Predefined oxygen standards   1   1
Choice of pressure unit (mbar, hPa, Torr, Atm)
Automatic/manual pressure compensation
Measurement Automatic and manual end point recording
Time-dependent end point recording
Serial measurements in user-defined time interval
Automatic storage of measurements
Manual storage of measurements
ATC/MTC
Safety Intelligent Sensor Management (ISM®)
Time and date
Routine/expert mode
Data storage 99 500 (GLP) 500 (GLP) 500 (GLP)
Calibration data storage
Calibration reminder
Sensor ID
Sensor SN
Sample ID
User ID
User-defined alarm limits
PIN protection
Security Dual-channel measurement
Dual-channel display
Backlit display
Softkey menu navigation
Multilingual interface (10 languages)
Alphanumeric entry
Acoustic signal
Extensive filter functions
Instrument self-test
Watertight and dustproof (IP67)



Standard equipment for the SevenGo Duo™ kit versions

  B
Measuring instrument
only
ELK
Electrode kit
FK2
1.8 m field kit
FK5
5 m field kit
Measuring instrument
IP67 sensor with 1.8 m fixed cable and electrode clip
IP67 sensor with 5 m fixed cable and electrode clip
IP67 sensor with 10 m fixed cable and electrode clip
uGo™ carrying case, 3 calibration bottles and calibration sachets (pH: 6 pcs; conductivity: 4 pcs)

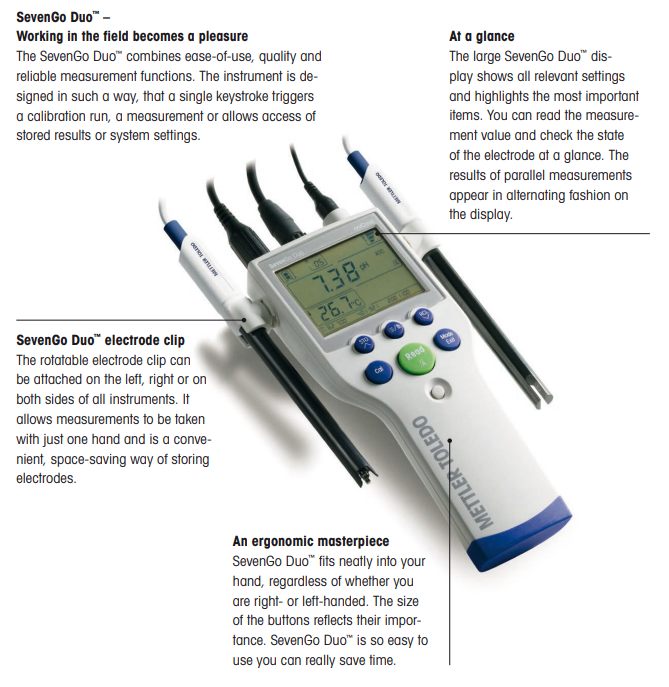

SevenGo Duo™ Ergonomic Analysis

• Rapid and easy routine measurements in dual-channel mode
• Determination of pH/mV and conductivity/salinity/TDS/specific resistance
• Excellent ease of operation thanks to high contrast display with large characters
• Reproducible results owing to automatic end point recognition



Durable carrying case
The uGo carrying case has a hermetically sealed, IP67 interior that is easy to clean and sterilize. The inner lining of the case provides instrument, sensors and accessories a secure fitting. Nothing moves, nothing gets damaged.



Rubber holster
This practical cover provides optimum impact protection for the device. You can naturally still attach the electrode clip and change the batteries without needing to remove the protective rubber-elastic cover.



Intelligent Sensor Management (ISM®)
ISM® provides the SevenGo Duo™ with a sophisticated new concept. It means that the user automatically works with the most up-to-date data for the sensor.

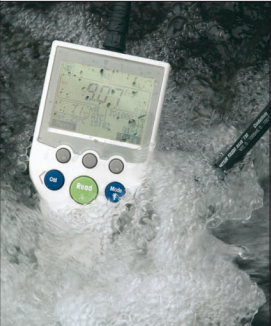

  IP67 Watertight and dustproof
The SevenGo Duo™ meets the requirements of IP67. This applies to the entire measurement system as well as to the meter itself. This means that the instrument is equipped for the most adverse usage conditions.





Reproducibility
The most important METTLER TOLEDO functions, such as automatic end point recognition and automatic buffer recognition, are naturally also integrated into our routine devices to make operating our instruments as convenient as possible.
  What is IP67?
The IP (Ingress Protection) norm code consists of two digits: the 6 indicates that SevenGo Duo™ is completely dustproof. The number 7 means that SevenGo Duo™ is watertight for 30 minutes at a depth of 1 meter.

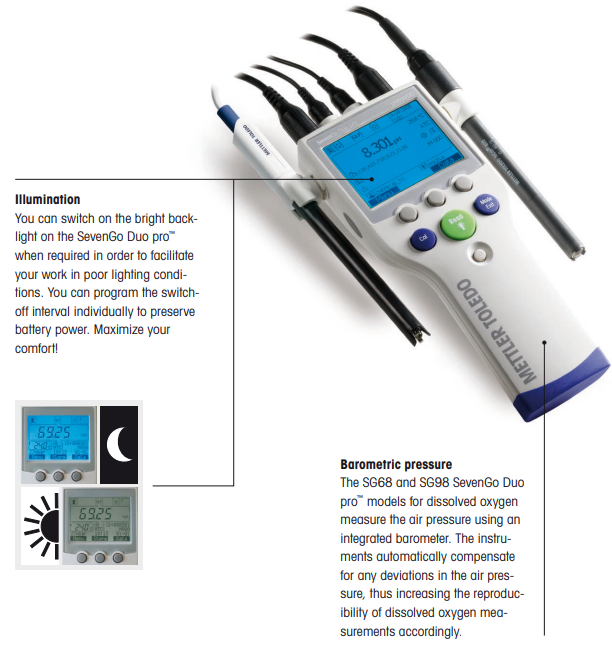

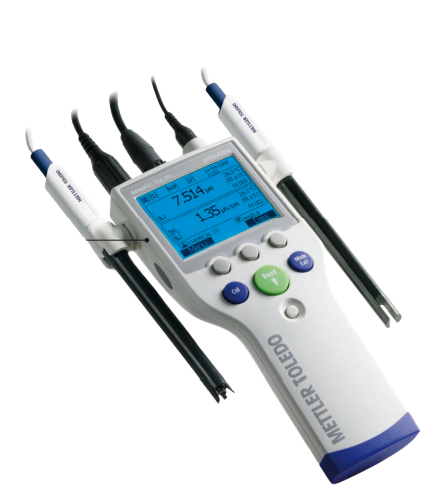

SevenGo Duo pro™ Comprehensive Professionalism

• Professional dual-channel instruments with GLP excellence
• Determination of pH/mV/ion or conductivity/salinity/TDS/specific resistance or dissolved oxygen
• Large, backlit display with all relevant information

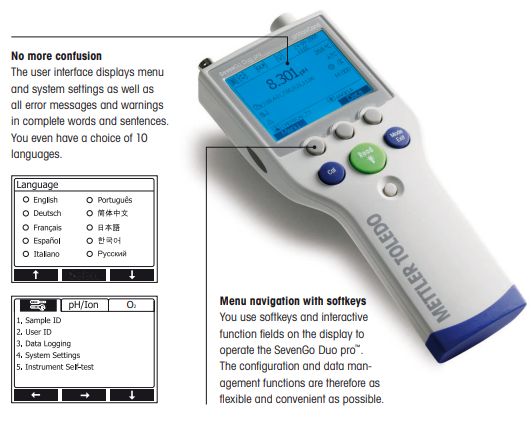

Expert mode

The expert decides! Make use of the entire range of functions to configure your instrument in the laboratory.

Routine mode

You can work with the SevenGo Duo pro™ extremely quickly in this mode, since the calibration and initial settings are blocked, and settings for the measurement are fixed ready to select.



SevenGo Duo pro™ the Best Among its Class

• Intuitive, user-friendly operation thanks to 10-language menu
• Extra reliability due to comprehensive support for intelligent sensors (ISM®)
• Supports latest sensor technology including optical dissolved oxygen



SevenGo Duo pro™ – An extensive functional package

The SG68, SG78 and SG98 SevenGo Duo pro™ instruments are easy to use, offer the highest possible accuracy and provide great functions and security features not found in other portable instruments. In addition to the many security features the SevenGo Duo pro™ instruments also have ISM®. This ensures that the correct and most up-to-date calibration of the connected sensor is always used for the measurement.

The OptiOx™ optical measuring system for determining dissolved oxygen is based on the reliable RDO® technology. Thanks to RDO (Rugged Dissolved Oxygen), measuring dissolved oxygen is easier than ever before:

Stable results and rapid response time – Optical oxygen measurement is superior to conventional technologies. OptiOx is fast, precise and produces highly reproducible results. Because of the optical measuring principle used, the oxygen is not chemically consumed during the measurement, which makes stirring the sample superfluous.
Immediately ready for use – The InLab® OptiOx requires no polarisation time, meaning you can start your measurement immediately.
Extremely easy handling, zero maintenance: save time! – The principle of optical measurement requires no membranes or electrolyte solutions. A used cap can be replaced by simply removing it and fitting a new one. A new cap lasts a whole year and the device informs you in good time when the next cap change is due.
Suitable for an immensely wide range of applications – Thanks to the robust design and the customized accessories, the InLab® OptiOx is a true allrounder. Thus, it's ideally equipped for use in the laboratory, e.g. in quality monitoring, or, when fitted with the OptiOx protective guard, in harsh environments.
Biochemical oxygen demand (BOD) – The BOD content of any effluent can be checked very easily, making measurements both quick and economic. With the special BOD adapter, the sensor is suitable for measuring in all current types of BOD bottles. According to the EPA (Environmental Protection Agency, USA), stirring is not necessary thanks to RDO technology.

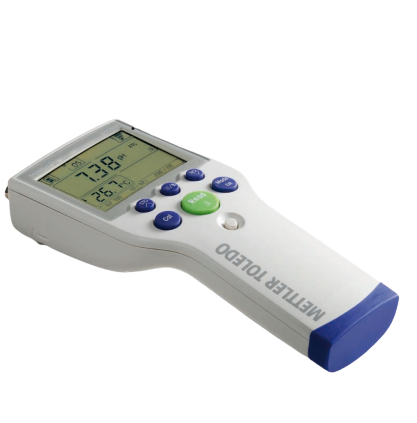

SevenGo Duo™– SG23 pH/conductivity meter (IP67) for routine use

• Dual-channel instrument for determining pH, mV, conductivity,
TDS (Total Dissolved Solids), salinity, and specific resistance
• 3-point pH calibration with predefined or user-defined buffers
• Intelligent Sensor Management (ISM®)
• Data storage for 99 GLP data records

SevenGo Duo pro™ – SG78 pH/ion/conductivity meter (IP67) to meet the highest requirements

• Dual-channel instrument for the determination of pH, mV, rel. mV, ion concentration, conductivity TDS (Total Dissolved Solids), salinity, and specific resistance
• 5-point pH calibration with a choice of 7 predefined and one user-defined buffer group
• Data storage for 500 GLP data records with time/date, sensor ID  and SN, and user and sample IDs
• Intelligent Sensor Management (ISM®)

SevenGo Duo pro™ – SG68 pH/ion/oxygen meter (IP67) to meet the highest requirements

• Dual-channel instrument for the determination of pH, mV, rel. mV, ion concentration, and dissolved oxygen
• 5-point pH calibration with a choice of 7 predefined and one user-defined buffer set
• Data storage for 500 GLP data records with time/date, sensor ID and SN, and user and sample IDs
• Intelligent Sensor Management (ISM®)

SevenGo Duo pro™ – SG98 pH/ion/RDO meter (IP67) to meet the highest requirements

• Dual-channel instrument for the determination of pH, mV, rel. mV, ion concentration, dissolved oxygen based on RDO technology
• 5-point pH calibration with a choice of 7 predefined and one user-defined buffer group
• Data storage for 500 GLP data records with time/date, sensor ID and SN, and user and sample IDs
• Intelligent Sensor Management (ISM®)



SevenGo Duo™ Sensors the right Sensor for each Application

• Robust IP67 sensors for pH, conductivity and oxygen applications
• Peace of mind thanks to Intelligent Sensor Management (ISM®)
• Integrated temperature sensor for automatic temperature compensation (ATC)
• Easy to clean, low-maintenance, long lifetime

Tried and tested sensors
The SevenGo Duo™ instruments in their kit versions are fitted with high-performance electrodes. All sensors combine robustness with state-of-the-art measurement technology and they have been tried and tested in numerous applications.



High-quality Sensors with Excellent Properties

InLab® 742 pure water conductivity sensor
• 2 steel poles cell for low conductivity values
• High accuracy at low conductivities
• Robust stainless steel shaft
InLab® 738 normal conductivity sensor
• Conductivity cell for medium and high conductivity values
• No polarization effects
• 4 graphite poles cell with excellent linearity
InLab® OptiOx optical oxygen sensor
• Optical oxygen sensor based on RDO technology
• Replaceable DO membrane
• Stable results and rapid response
InLab® 605 polarographic oxygen sensor
• Oxygen sensor based on precise process analytics
• Robust, chemically-resistant PPS shaft



Other great sensors with and without ISM®

METTLER TOLEDO supplies pH electrodes for all possible applications. The most important electrodes are also available with ISM®. Naturally, all other InLab® sensors in our diverse range can also be connected to SevenGo Duo™ instruments. The complete METTLER TOLEDO sensor portfolio is documented in a separate brochure with the order number 30264253.



Mettler Toledo SevenGo Duo™ Portables pH Meters Technical Specifications

SevenGo Duo™– SG23 pH/conductivity meter (IP67) for routine use

SevenGo™ SG23 Measuring range Resolution Accuracy
pH 0.00 to 14.00 0.01 ±0.01
mV –1999 to 1999 1 ±1
Temperature pH –5.0 to 105 °C 0.1 °C ±0.5 °C
Conductivity 0.01 µS/cm to 500 mS/cm 0.01 to 1 ±0.01%
Temperature cond. –5.0 to 105 °C 0.1 °C  ±0.2 °C
TDS 0.01 mg/L to 300 g/L  0.01 to 1 ±0.5 °C
Spec. resistance 0.00 to 100.0 MΩcm 0.01 to 0.1 ±0.5 °C
Salinity 0.00 to 80.0 ppt 0.01 to 0.1 ±0.5 °C
pH sensor inputs BNC; RCA/cinch (both IP67)
Conductivity sensor input LTW 7-pin (IP67)
Power supply 4 × 1.5 V AA batteries or 1 × 3 V NiMH accumulators
Operating conditions 0 to 40 °C, 5 to 85% rel. humidity (non-cond.)
Size/weight 220 × 90 × 45 mm/357 g (without batteries)



SevenGo Duo pro™ – SG78  pH/ion/conductivity meter (IP67) to meet the highest requirements

SevenGo Duo pro™ SG78 Measuring range Resolution Accuracy
pH –2.000 to 19.999 0.001 ±0.002
mV (rel. mV) –1999 to 1999  0.1 ±0.1
Ions
Conductivity 0.01 µS/cm to 1000 mS/cm 0.01 ±0.5%
TDS 0.01 mg/L to 600 g/L 0.01 to 1 ±0.5 °C
Spec. resistance 0.00 to 100.00 MΩcm
Salinity 0.00 to 80.0 ppt
Temperature –5.0 to 130.0 °C (ATC)
–30.0 to 130.0 °C (MTC)
0.1 °C ±0.2 °C
pH sensor inputs BNC; RCA/cinch (both IP67)
Conductivity sensor input LTW 7-pin (IP67)
Power supply 4 × 1.5 V AA batteries or 1 × 3 V NiMH accumulators
Operating conditions 0 to 40 °C, 5 to 85% rel. humidity (non-cond.)
Size/weight 220 × 90 × 45 mm/357 g (without batteries)



SevenGo Duo pro™ – SG68 pH/ion/oxygen meter (IP67) to meet the highest requirements

SevenGo Duo pro™ SG68 Measuring range Resolution Accuracy
pH –2.000 to 19.999 0.001 ±0.002
mV (rel. mV) –1999 to 1999  0.1 ±0.1
Ions (units)
mg/L, mmd/ L, mol/L
0.000 to 999.9%
0.000 to 9999 ppm
1.00E-9 to 9.99E+9
  ±0.5%
Temperature –5.0 to 130.0 °C (ATC)
–30.0 to 130.0 °C (MTC)
0.1 °C ±0.2 °C
Saturation 0.0 to 600% 0.01 to 1 ±0.5 °C
Temperature 0.0 to 60.0 °C 0.1 °C ±0.1 °C
Oxygen (mg/L, ppm) 0.00 to 99.00 0.01 ±0.5% max. 0.03
Pressure 500 to 1100 mbar 1 ±1
pH sensor inputs BNC; RCA/cinch (both IP67)
DO sensor inputs BNC; RCA/cinch (both IP67)
Power supply 4 × 1.5 V AA batteries or 1 × 3 V NiMH accumulators
Operating conditions 0 to 40 °C, 5 to 85% rel. humidity (non-cond.)
Size/weight 220 × 90 × 45 mm/357 g (without batteries)



SevenGo Duo pro™ – SG98 pH/ion/RDO meter (IP67) to meet the highest requirements

SevenGo Duo pro™ SG98 DO Measuring range Resolution Accuracy
pH –2.000…19.999 0.001 ±0.002
mV (rel. mV) –1999…1999 0.1 ±0.1
Ions (units)
mg/L, mmd/ L, mol/L
0.000…999.9%
0.000…9999 ppm
1.00E-9…9.99E+9
  ±0.5%
Temperature –5.0 to 130.0 °C (ATC)
–30.0 to 130.0 °C (MTC)
0.1 °C ±0.2 °C
pH sensor inputs BNC; RCA/cinch (both IP67)
  Measuring range Resolution Accuracy
Oxygen (mg/L, ppm) 0.00…50.00 0.01 ± 0.1 mg/L from 0…8
± 0.2 mg/L from 8…20
± 10% from 20…50
Saturation 0…500 % 0.1 %
Temperature DO 0…50.0 °C 0.1 °C ± 0.1 °C
Pressure  (mbar) 500 to 1100 mbar 1 ±1
DO sensor inputs Mini-LTW (IP67)
Power supply 4 × 1.5 V AA batteries or 1 × 3 V NiMH accumulators
Operating conditions 0 to 40 °C, 5 to 85% rel. humidity (non-cond.)
Size/weight 220 × 90 × 45 mm/357 g (without batteries)





SevenGo Duo™– SG23 pH/conductivity meter (IP67) for routine use

Order info Description and sensors Order No.
SG23-B Instrument only 51302600
SG23-ELK Electrode kit with InLab® Expert Go-ISM and InLab®738-ISM (both IP67, 1.8 m cable) 51302601
SG23-FK2 Field kit with InLab® Expert Go-ISM, InLab®738-ISM (both IP67, 1.8 m cable) and uGo™ 51302602
SG23-FK5 Field kit with InLab® Expert Go-ISM, InLab®738-ISM (both IP67, 5 m cable) and uGo™  51302603



SevenGo Duo pro™ – SG78  pH/ion/conductivity meter (IP67) to meet the highest requirements

Order info Description and sensors Order No.
SG78-B Instrument only 51302620
SG78-ELK Electrode kit with InLab® Expert Go-ISM and InLab® 738-ISM (both IP67, 1.8 m cable) 51302621
SG78-FK2 Field kit with InLab®Expert Go-ISM, InLab® 738-ISM (both IP67, 1.8 m cable) and uGo™ 51302622
SG78-FK5 Field kit with InLab®Expert Go-ISM, InLab® 738-ISM (both IP67, 5 m cable) and uGo™ 51302623
SG78-USP/EP Like SG78-ELK but with different sensors: Inlab® Pure Pro-ISM, 2 m ISM-electrode cable and Inlab® 742-ISM 51302625



SevenGo Duo pro™ – SG68 pH/ion/oxygen meter (IP67) to meet the highest requirements

Order info Description and sensors Order No.
SG68-B Instrument only 51302610
SG68-ELK Electrode kit with InLab® Expert Go-ISM and InLab® 605-ISM (both IP67, 1.8 m cable) 51302611
SG68-FK2 Electrode kit with InLab® Expert Go-ISM and InLab® 605-ISM (both IP67, 1.8 m cable) and uGo™ 51302612
SG68-FK5 Field kit with InLab® Expert Go-ISM, InLab®605-ISM (both IP67, 5 m cable)and uGo™ 51302613



SevenGo Duo pro™ – SG98 pH/ion/RDO meter (IP67) to meet the highest requirements

Order info Description and sensors Order No.
SG98-B Instrument only 51302661
SG98-ELK Electrode kit with InLab® Expert Go-ISM and InLab® OptiOx (both IP67, 1.8 m cable) 51302662
SG98-FK2 Field kit* with InLab® Expert Go-ISM, InLab® OptiOx (both IP67, 1.8 m cable) and uGo™ 51302663
SG98-FK5 Field kit* with InLab® Expert Go-ISM-5m, InLab® OptiOx-5m (both IP67, 5 m cable) and uGo™ 51302664



SevenGo Duo™ Sensors the right Sensor for each Application

InLab® pH Conductivity Dissolved oxygen
Expert Go-ISM Routine Go-ISM Solids Go-ISM Water Go 738-ISM 742-ISM 605-ISM OptiOx
Order
number
1.8 m cable 51344102 30248832 51343156 30253098 51344110 51344116 51344611 51344621
5 m cable  51344103 51344112 51344118 51344612 51344622
10 m cable 51344104 51344114 51344613 51344623
pH range 0 to 14 0 to 14 1 to 11  1 to 11  0.01 to
1000 mS/cm
0.001 to
500 µS/cm
0 to 200%,
0 to 20 mg/L
0 to 500%,
0 to 50 mg/L
Temperature range 0 to 100 °C 0 to 100 °C 0 to 80 °C 0 to 80 °C 0 to 100 °C 0 to 100 °C 0 to 60 °C 0 to 50 °C
Temperature probe NTC 30 kΩ NTC 30 kΩ NTC 30 kΩ NTC 30 kΩ NTC 30 kΩ NTC 30 kΩ NTC 22 kΩ NTC 30 kΩ
Type of membrane U HA LoT LoT Polargraphic Optical
Membrane resistance (25 °C) <250 MΩ <600 MΩ <250 MΩ <150 MΩ
Junction type/ cell type Open junction Ceramic Open junction Porous PTFE 4 graphite poles 2 steel poles
Reference system/
electrolyte
XEROLYT®
 polymer
3 mol/L KCl  XEROLYT® EXTRA
Polymer
3 mol/L KCl
Nominal cell constant 0.57 cm-1 0.57 cm-1
Shaft material PEEK Glass Glass Polysulfone Epoxy Stainless steel PPS PC/ABS
Shaft length 120 mm 120 mm 25 mm 120 mm 120 mm 120 mm 120 mm 65 mm
Shaft diameter 12 mm 12 mm 6 mm 12 mm 12 mm 12 mm 12 mm 16 mm
Storage InLab® storage solution (Order number 30111142) Dry Dry Dry Dry
IP67 Yes Yes Yes Yes Yes Yes Yes Yes
Connections Fixed cable: BNC/RCA (Cinch) Fixed cable:
LTW
Fixed cable:
LTW
Fixed cable:
BNC/RCA (Cinch)
Fixed cable:
mini LTW



InLab® Science Pro-ISM Surface Pro-ISM Power Pro-ISM Pure Pro-ISM Micro Pro-ISM Flex-Micro
Order number with ISM 51344072 30249570 51344211 51344172 51344163 51343164
pH range  0 to 12 0 to 11 0 to 12 0 to 11 0 to 14 0 to 14
Temperature range 0 to 100 ºC 0 to 50 ºC 0 to 130 ºC 0 to 80 ºC 0 to 100 ºC 0 to 80 ºC
Temperature probe NTC 30 kΩ NTC 30 kΩ NTC 30 kΩ NTC 30 kΩ NTC 30 kΩ
Type of membrane glass A41 LoT A41 LoT U U
Membrane resistance (25 °C) <600 MΩ <800 MΩ <600 MΩ <50 MΩ <300 MΩ <600 MΩ
Diaphragm type Movable
glass sleeve
Ceramic ring Ceramic Immovable
glass sleeve
Ceramic Porous PTFE
Reference system ARGENTHAL™
with Ag+ trap
ARGENTHAL™
with Ag+ trap
SteadyForce ARGENTHAL™
with Ag+ trap
ARGENTHAL™
with Ag+ trap
ARGENTHAL™
with Ag+ trap
Reference electrolyte 3 mol/L KCl 3 mol/L KCl DPA gel 3 mol/L KCl 3 mol/L KCl Gel
Shaft material Glass Polysulfone Glass Glass Glass Epoxy
Shaft length 170 mm 120 mm 170 mm 170 mm 130 mm 180 mm
Shaft diameter 12 mm 12 mm 12 mm 12 mm 5 mm 6 mm
Storage InLab® storage solution (Order number 30111142)
IP67 No No No No No No
Electrode cables Electrode cable 1.8 m BNC + RCA (Cinch) IP67 30281913 must be used Fixed 1.0 m
BNC cable
Write Your Own Review
You're reviewing:Mettler Toledo SevenGo Duo™ Portables pH Meters
Your Rating

Sign up for our latest offers

By submitting your details you consent to their use in accordance with our Privacy Notice
