Please email / call for availability

Product Features

• 30 x 30cm (12” x 12”), and 30 x 50cm (12” x 20”)
• Digital and Infrared
• Choice of plate material
• All units incorporate the latest technology, microprocessor controlled, dual thermocouples to ensure accurate temperature control and over temperature protection
• Biocote® anti-microbial protection
• LED temperature indicator
• Hot warning light, remains active even when unplugged
• Now includes a 120V variant across the range

Delivery options

At Cadmus Products, we prioritise eﬃcient order delivery and oﬀer competitive shipping rates worldwide. Our streamlined process ensures clarity and reliability for all your shipping requirements.

We handle consignments of various sizes across the UK and globally, primarily using DHL, but may select other couriers for specific needs.

For online laboratory product purchases, shipping costs are displayed at checkout. For quoted items, shipping prices will be included in your email quote.

Please visit our shipping and delivery page for more information here.

Cole-Parmer® Large Capacity Hot Plates and Stirrers

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SKU

HP-200LargeCapacity

Details

Cole-Parmer® Large Capacity Hot Plates and Stirrers

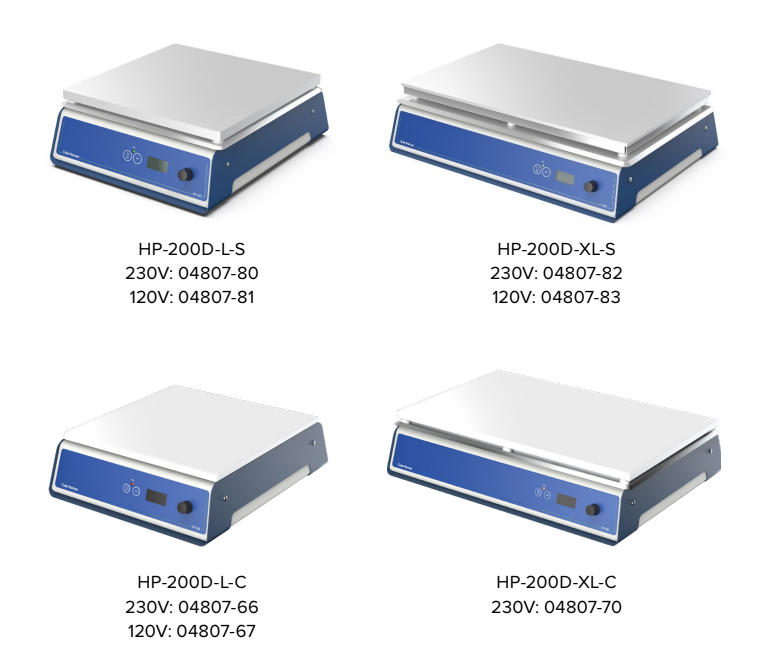

Cole-Parmer® Large Capacity Hot Plates HP-200 Series - Digital

Features:

• Digital setting and control of plate temperature

• Accurate temperature control by microprocessor

• Choice of top plate material:

-glass ceramic – provides excellent chemical resistance, high plate temperatures, easy to clean

- aluminum/silicon alloy – rapid heating and even temperature distribution across whole plate

• Large square plate area ideal for heating one large vessel or several smaller ones:

- 30 x 50cm can accommodate up to 30 x 100mL beakers

• Hot warning light, remains active even when unplugged while above 50°C

• 30 x 30cm (12” x 12”) :

- 04807-66-67 – ceramic, max temp 450°C

- 04804-80-81 – aluminum, max temp 300°C

• 30 x 50cm (12” x 20”) :

- 04807-70 - ceramic, max temp 375°C

- 04807-82-83 - aluminum, max temp 300°C

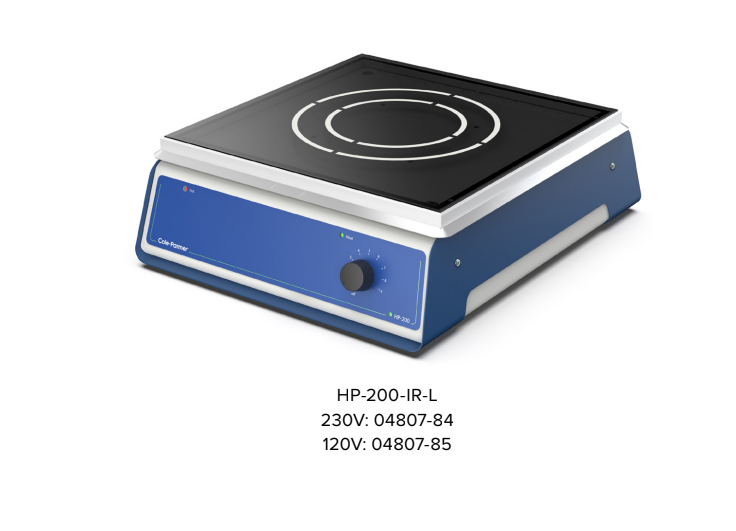

Cole-Parmer® Large Capacity Hot Plates HP-200 Series - Infrared

Features:

• Easy to use temperature control dial

• Infrared heater is efficient and saves time and energy: - even plate temperatures and uniform heating conditions

• Ideal for heating large volumes of liquid

• Chemically resistant ceramic top: - Max temp 450C

• Hot warning light, remains active even when unplugged while above 50°C

• 30 x 30cm (12” x 12”)

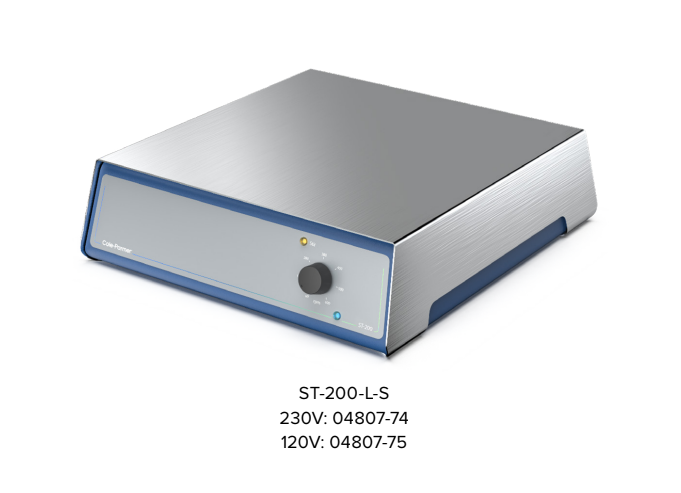

Cole-Parmer® Large Capacity Stirrers ST-200 Series

Features:

• Easy to use temperature control dial

• Powerful magnetic drive with electronic feed-back speed control accurately maintains the set speed

• Powerful magnets for strong magnetic coupling

• Speed range - 100-600 rpm

• Easily stirs up to 30 liters

• Robust, durable construction with stainless steel top

• 30 x 30cm (12” x 12”)

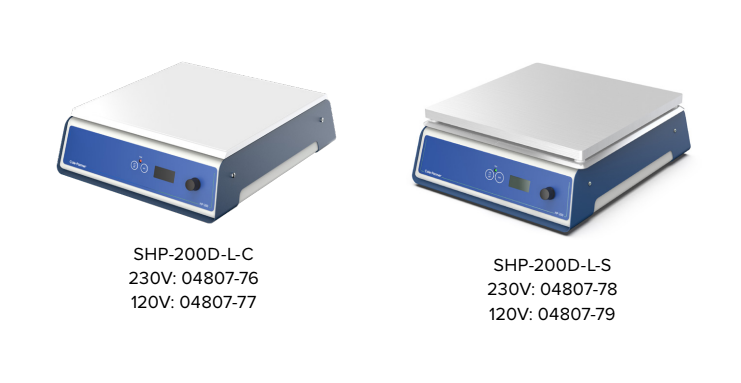

Cole-Parmer® Large Capacity Stirrer/ Hot Plates SHP-200 - Digital

Features:

• Easy to use temperature and stirring control dials

• Choice of top plate material:

- glass ceramic – provides excellent chemical resistance, high plate temperatures, easy to clean

- aluminum/silicon alloy – rapid heating and even temperature distribution across whole plate

• Large square plate area ideal for handling large vessel

• Powerful stirring action – volumes up to 15 Liters

• Independent safety circuit to protect against overheating

• Hot warning light, remains active even when unplugged while above 50°C

• 30 x 30cm (12” x 12”):

- 04807-76-77 – ceramic, max temp 450°C, stirring 100 – 1500 rpm
- 04807-78-79 – aluminum, max temp 300°C, stirring 100 – 1500 rpm

Cole-Parmer® Large Capacity Stirrer/ Hot Plates SHP-200 Series - Infrared

Features:

• Easy to use temperature control dial

• Powerful magnetic drive with electronic feed-back speed control accurately maintains the set speed

• Powerful magnets for strong magnetic coupling - stirring 100 - 1500 rpm

• Easily stirs up to 30 liters

• Chemically resistant ceramic top - max temp 450°C

• 30 x 30cm (12” x 12”)

Product Specifications

Cole-Parmer® Large Capacity Hot Plates and Stirrers Technical Specification

Specification	HP-200D-L-C	HP-200D-L-S	HP-200D-XL-C	HP-200D-XL-S	ST-200-L-S	SHP-200D-L-C	SHP-200D-L-S	HP-200-IR-L	SHP-200-IR-L
Plate material	Glass ceramic	Al/Si alloy	Glass ceramic	Al/Si alloy	Stainless steel	Glass ceramic	Al / Si alloy	-	-
Plate dimensions, mm	300 x 300	300 x 300	300 x 500	300 x 500	300 x 300	300 x 300	300 x 300	300 x 300	300 x 300
Heated area, mm	200 x 200	300 x 300	250 x 450	300 x 500	-	200 x 200	300 x 300	140 diameter	140 diameter
Heater power, W	1200	600	2250	1500	-	1200	600	900	900
Max. plate temp. °C	450	300	375	300	-	450	300	-	-
Speed range, rpm	-	-	-	-	100x 600	100 to 1500	100 to 1500	-	100 to 1500
Max.stirring capacity, litres	-	-	-	-	30	15	15	-	-
Dimensions, mm (w x d x h)	320 x 370 x 120	320 x 370 x 120	560 x 360 x 130	520 x 360 x 130	328 x 369 x 103	300 x 365 x 105	300 x 365 x 105	300 x 365 x 105	300 x 365 x 105
Net weight, kg	6	6	12	12	5	7	7	4	4
Electricity supply	120V, 60Hz 230V 50/60Hz	230V 50/60Hz	230V, 50Hz	120V, 60Hz 230V 50/60Hz	120V, 60Hz 230V 50/60Hz	120V, 60Hz 230V 50/60Hz	120V, 60Hz 230V 50/60Hz	120V, 60Hz 230V 50/60Hz	120V, 60Hz 230V 50/60Hz
IP Rating	31	31	-	-	-	-	-	-	-

Order Information

Cole-Parmer® Large Capacity Hot Plates and Stirrers Ordering Information

Description	Ordering Number	Series No.	Model No.	Legacy Sku.
Ceramic, Digital, 30x30cm Hotplate, 230V	04807-66	HP-200	HP-200D-L-C	CB300
Ceramic, Digital, 30x30cm Hotplate, 120V	04807-67	HP-200	HP-200D-L-C-120	CB300/120V/60
Ceramic, Digital, 30x50cm Hotplate, 230V	04807-70	HP-200	HP-200D-XL-C	CB500
Metal, Analog, 30x30cm Stirrer, 230V	04807-74	ST-200	ST-200-L-S	SB301
Metal, Analog, 30x30cm Stirrer, 120V	04807-75	ST-200	ST-200-L-S-120	SB301/120V/60
Ceramic, Digital, 30x30cm Hotplate/Stirrer, 230V	04807-76	SHP-200	SHP-200D-L-C	CB302
Ceramic, Digital, 30x30cm Hotplate/Stirrer, 120V	04807-77	SHP-200	SHP-200D-L-C-120	CB302/120V/60
Metal, Digital, 30x30cm Hotplate/ Stirrer, 230V	04807-78	SHP-200	SHP-200D-L-S	SB302
Metal, Digital, 30x30cm Hotplate/ Stirrer, 120V	04807-79	SHP-200	SHP-200D-L-S-120	SB302/120V/60
Metal, Digital, 30x30cm Hotplate, 230V	04807-80	HP-200D	HP-200D-L-S	SD300
Metal, Digital, 30x30cm Hotplate, 120V	04807-81	HP-200D	HP-200D-L-S-120	SD300/120V/60
Metal, Digital, 30x50cm Hotplate, 230V	04807-82	HP-200D	HP-200D-XL-S	SD500
Metal, Digital, 30x50cm Hotplate, 120V	04807-83	HP-200D	HP-200D-XL-S-120	SD500/120V/6
Infrared Hotplate, 30x30cm, 230V	04807-84	HP-200	HP-200-IR-L	CR300
Infrared Hotplate, 30x30cm, 120V	04807-85	HP-200	HP-200-IR-L-120	CR300/120V/60
Infrared Hotplate/Stirrer, 30x30cm, 230V	04807-86	SHP-200	SHP-200-IR-L	CR302
Infrared Hotplate/Stirrer, 30x30cm, 120V	04807-87	SHP-200	SHP-200-IR-L-120	CR302/120V/60
