Product Features
- (Series #1200) Water Level Meter w/ Fixed Probe
- PFAS FREE Premium Water Level Meter
- Measure depth to water accurately
- Easily collect drawdown data to calculate Well production
- Removeable 5/8” (15.9mm) Water Level Probe (IP68) w/ holder
- Modular Design makes for inexpensive and easy repairs
Delivery options
At Cadmus Products, we prioritise efficient order delivery and offer competitive shipping rates worldwide. Our streamlined process ensures clarity and reliability for all your shipping requirements.
- We handle consignments of various sizes across the UK and globally, primarily using DHL, but may select other couriers for specific needs.
- For online laboratory product purchases, shipping costs are displayed at checkout. For quoted items, shipping prices will be included in your email quote.
- Please visit our shipping and delivery page for more information here.
BrandHeron Instruments

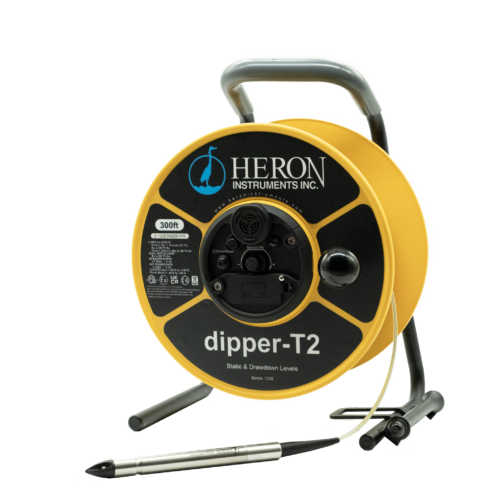

The Dipper-T2 is a rugged and dependable PFAS FREE water level meter made from high-quality materials that are easy to use for various applications. The Dipper-T2 is capable of measuring both static and falling head levels. Static mode is used for measuring the depth of water in wells, boreholes and standpipes. DrawDown mode is used for measuring falling water levels during purging, well development and low flow sampling; helping to protect your pump from damage caused by dry running.
The Heron Dipper-T2 is renowned for its premium, polyethene-coated yellow steel tape accuracy in measuring depth to water. Available in your choice of either metric or engineering scale.
Dipper-T2 Water Level Meter
- • Premium Stainless Steel Polyethylene Coated Tape
- • Removeable 5/8” (15.9mm) Water Level Probe (IP68) w/ holder
- • Electronic Panel with audio/visual signals and volume control dial (Fully Encapsulated to IP65)
- • Sensitivity dials to tune out cascading water
- • Vinyl, ergonomic holding grip
- • 9V Battery
- • FREE Backpack Carrying Case w/ adjustable straps, laptop & notepad pouches
- • 2-year warranty
Certified intrinsically safe to ATEx, IECEx, CSA, and UL standards
The Heron Instruments Dipper-T2 Water Level Meter is designed for well drillers, consultants, and hydrogeologists all across the globe.
The Dipper-T2 is a rugged and dependable PFAS FREE water level meter made from high-quality materials that are easy to use for various applications. The Dipper-T2 is capable of measuring both static and falling head levels. Static mode is used for measuring the depth of water in wells, boreholes and standpipes. DrawDown mode is used for measuring falling water levels during purging, well development and low flow sampling; helping to protect your pump from damage caused by dry running.
The Heron Dipper-T2 is renowned for its premium, polyethene-coated yellow steel tape accuracy in measuring depth to water. Available in your choice of either metric or engineering scale.
Dipper-T2 Water Level Meter
The Heron Dipper-T2 Water Level Meter includes:
▪ Premium Stainless Steel Polyethylene Coated Tape
▪ Removeable 5/8” (15.9mm) Water Level Probe (IP68) w/ holder
▪ Removeable 5/8” (15.9mm) Water Level Probe (IP68) w/ holder
▪ Electronic Panel with audio/visual signals and volume control dial (Fully Encapsulated to IP65)
▪ Sensitivity dials to tune out cascading water
▪ Vinyl, ergonomic holding grip
▪ 9V Battery
▪ FREE Backpack Carrying Case w/ adjustable straps, laptop & notepad pouches
▪ 2-year warranty
Certified intrinsically safe to ATEx, IECEx, CSA, and UL standards
Product Specification
| Dipper-T2 Series 1200 | |||
|---|---|---|---|
| Reel Assembly | Standard | Large | Tape |
| Height | 36cm (14") | 43cm (17") | Tape: High Tensile Stainless Steel |
| Depth | 21cm (8'') | 23cm (9'') | Jacketing: Polythylene |
| Width | 29cm (11.5'') | 34cm (13.5'') | Conductors: 7 strands (4 stainless steel & 3 copper) |
| Weight (Reel Assembly Only) | 2.6kg (5.7lb) | 4.2kg (9.3lbs) | Markings: Metric or engineering scale - under jacketing |
| Plate Size | 27cm (10.5'') | 34cm (13.5'') | Width: 9.5mm (3/8'') |
| Plate Material | Nylon fibre composite | Aluminium | Dog bone profile: Dogbone for low friction |
| Brake | Ergonomic Dial | Ergonomic Dial | Break strength: 125kg (280lbs) |
| Stainless Ball Bearing | Yes | Yes | Accuracy: 1/100ft of a foot per 100 feet (3mm/30 meters) |
| Hanger | Included on frame | ||
| Tape Guide | Included on frame | Included on frame | Resolution: Metric 1mm, Imperial 1/100 per ft. |
| Ground Lead | Included on frame | Included on frame | |
| 30m, 100ft | 150m, 500ft | ||
| 45m, 150ft | 200m, 750ft | ||
| Tape Lengths | 60m, 200ft | 300m, 1000ft | |
| 100m, 300ft | |||
| Electronic Panel: | Link & Probe: | ||
| Operating Mode | Static and drawdown | Link and probe: Snag-free design | |
| Detects | Water | Probe weight: 130g (4.6oz) | |
| Filtering | Sensitivity dial | Length: 150mm (5.9'') | |
| Operating Temperature | -45 to +55°C | Diameter: 16mm (5/8'') | |
| Visual Indicator | Bright red LED | Removable/replaceable: Yes, tool-free removal | |
| Audible Indicator | Yes 0-100dbi | Break stain: 70kg (150lbs) | |
| Power Source | 9V | Wetted materials: Stainless steel 316, 30% glass-filled composite, Polyurethane. | |
| Battery Life | Unlimited standby | ||
| On/Off | Automatic | Operating temperature: -45 to +135 °C | |
| Durability | IP68 | Sensor accuracy: +/-1mm (+/-0.04'') | |
| Removable/Replaceable | Yes | Detection time: Instantaneous | |
| Certification | Dipper-T2 is certified to ATEx, IECEx, CSA and UL Standards | ||
| North American |
c-QPS-us LR3030 Class I, Division 1, Groups CD, T3 Ex ia IIB T3 Ga |
IECEx |
ECEx QPS 23.0008X Ex ia IIB T3 Ga |
| ATEX | QPS23ATEX5003X CE 2900 (Ex) II 1 G |
CE | Yes |
| Warranty | 2 years / 1 year probe | Padded Carry Case: | Included |
| Dipper-T2 | ||
|---|---|---|
| Part number | New replacement | Description |
| DM1.1-30 |
|
|
| DM1.1-60 | 1202-60M | Heron Dipper-T2, ATEX, 60m yellow SS/poly tape, removable probe with carry bag |
| DM1.1-100 | 1202-100M | Heron Dipper-T2, ATEX, 100m yellow SS/poly tape, removable probe with carry bag |
| DM1.1-150 | 1202-150M | Heron Dipper-T2, ATEX, 150m yellow SS/poly tape, removable probe with carry bag |
| DM1.1-200 | 1202-200M | Heron Dipper-T2, ATEX, 200m yellow SS/poly tape, removable probe with carry bag |
